AutoFueler Technology

Harnessing cutting-edge engineering, AutoFueler revolutionizes the utilization of field gas and redefines refueling, ensuring enhanced safety, environmental cleanliness, and superior efficiency. These self-contained, self-sufficient units effortlessly harmonize with your current systems, facilitating swift and uncomplicated transitions.

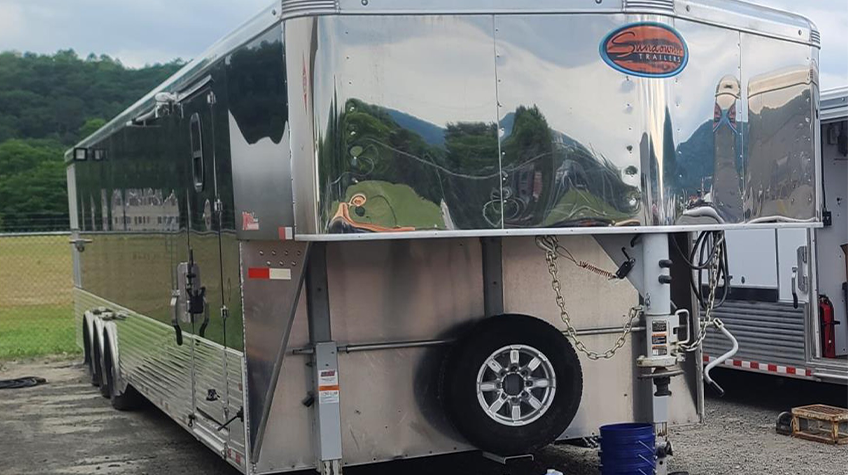

AutoFueler Unit Layout

Unit Layout

  • 45 Ft enclosed gooseneck
  • 24 Reels
  • 300 Ft fire resistant hydraulic hose per reel
  • We have the ability to fully automate fuel supply for any variation of 20 frac pumps, 3 pumpdowns, and the blender
  • 1 onboard 35kw generator
  • 1 25kw back up generator
  • 1 400 gallon onboard ulsd tank. The ulsd tank is installed in the trailer to save space on location
  • Altogether the footprint size is 25 Ft by 50 Ft

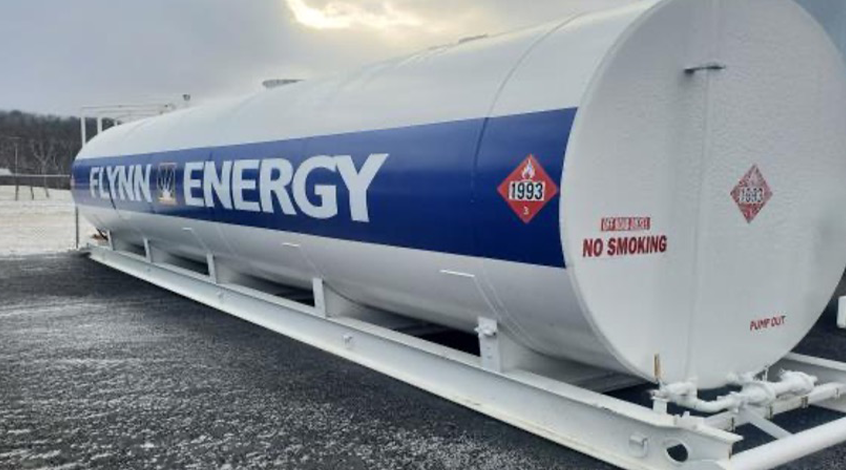

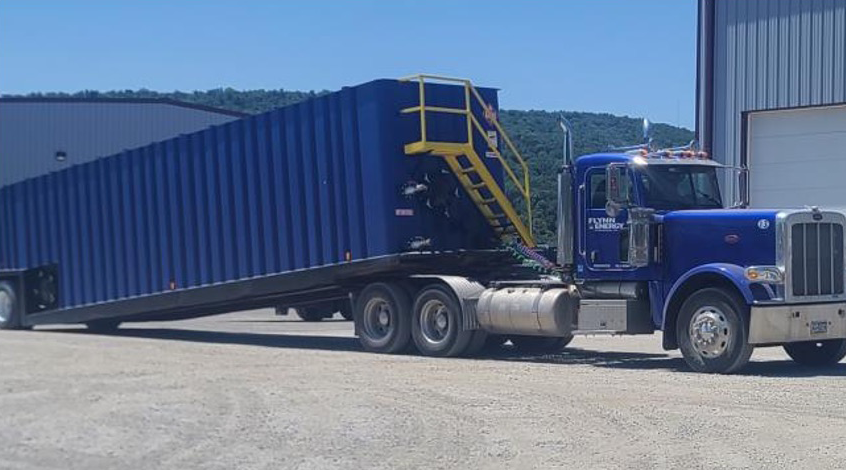

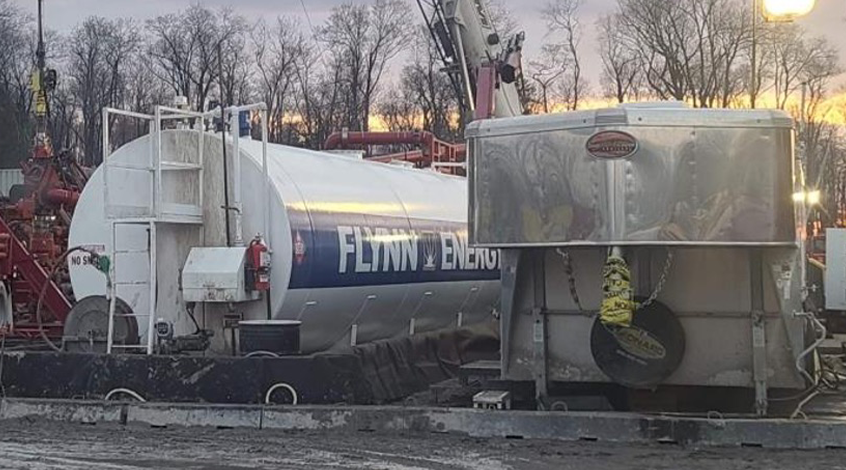

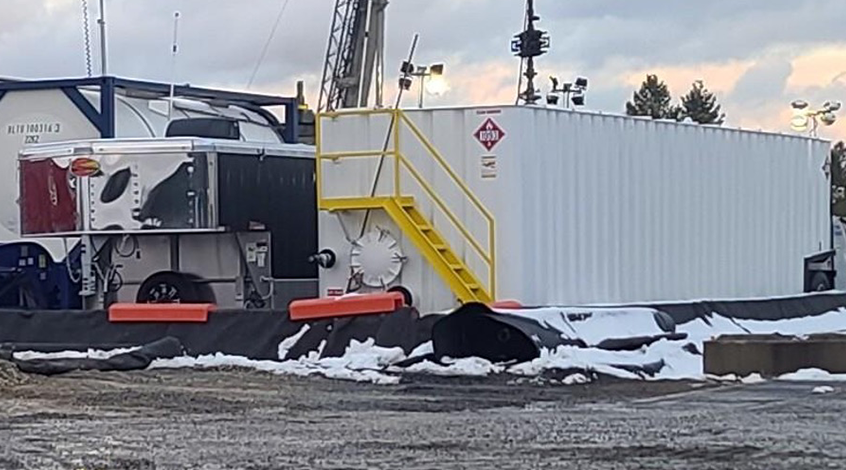

Fuel Tank Storage Options

We offer the following fuel tank storage options:

  • 21,000 Gallon Frac Tank
  • 12,000 Gallon Skid Tank
  • Single Walled
  • Double Walled
Storage Tank Option Storage Tank Option Storage Tank Option Storage Tank Option

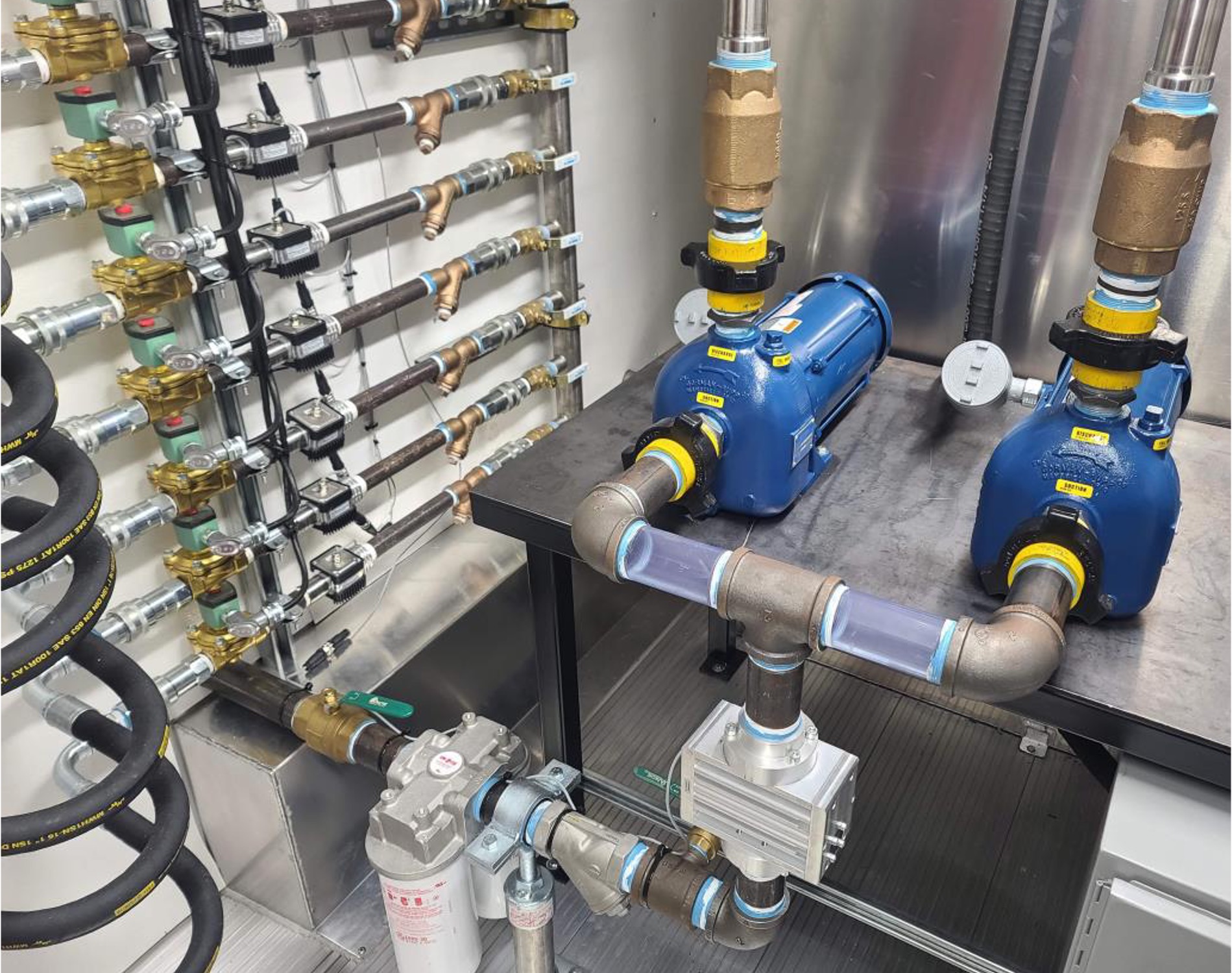

Pump Operations

Pump Operations

  • Two 240 volt pumps. The pumps will automatically turn on and off based on any given reel calling for fuel.
  • All fuel flow through a high-volume filter housing an inline meter provides additional help for our asset tracking.
  • Two sight tubes installed before the pumps help show the flow of fuel to determine the flow quality and fuel quality at any given time.
  • Hammer unions and check valves provide a fast and efficient changing of pumps if ever necessary.

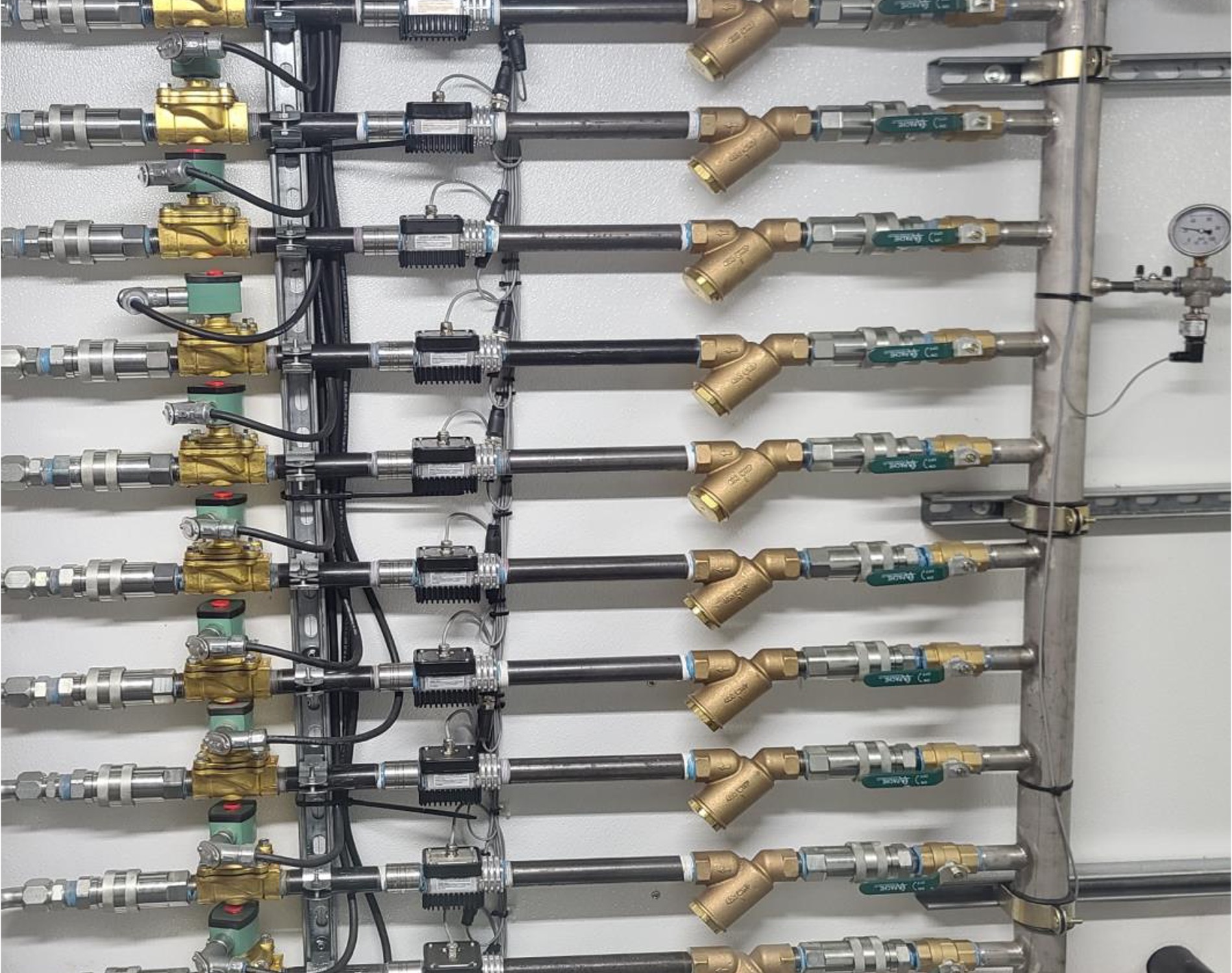

Individual Reel Sets

  • Every reel has its own set manual ball valve (Inline strainer, electric flow meter, and electric ball valve)
  • The electric ball valve is controlled by the PLC, when the level of the sensor reads a preset level in the fuel tank, the PLC will open the corresponding ball valve. It will then close when the sensor has reached its shut off point.
  • Every set has quick disconnect fitting on each end along with wire plugs to make for a seamless swap out.
Individual Reel Sets

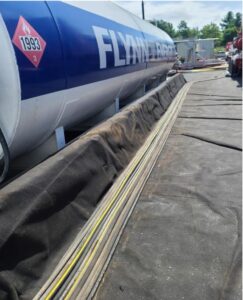

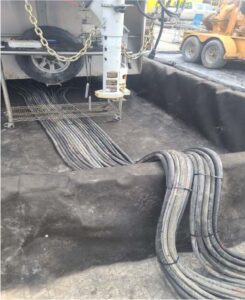

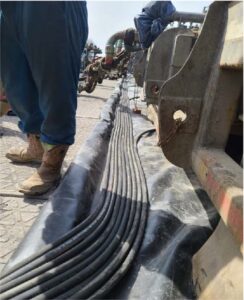

Fuel Lines on Location

All fuel lines are organized to provide easy inspection. This helps to prevent damage that would result in spillage and downtime.

Fuel Line on Location Fuel Line on Location Fuel Line on Location

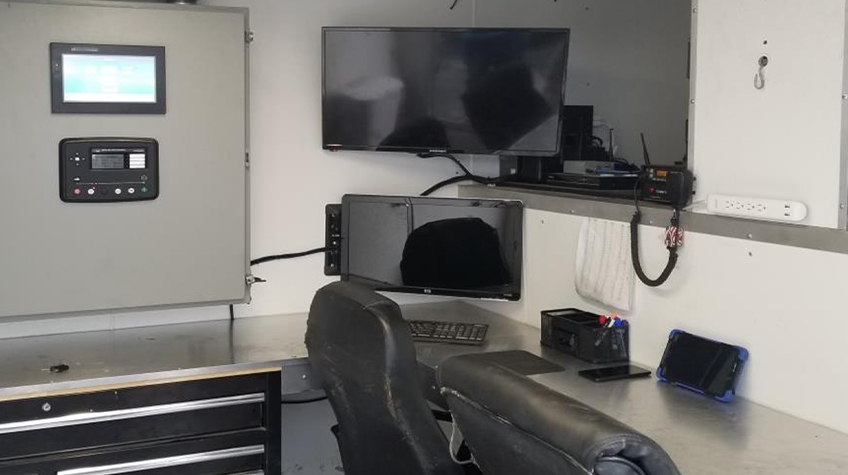

AutoFueler Control Room

AutoFueler Control Room

  • The control room is always manned by 1 person.
  • We have additional personnel on location to help support all fueling needs.
  • The control room houses all computer and PLC components.
  • 2 screens display all sensor connectivity on one screen and all operations and functions on the other screen.
  • The control room includes heat/AC, toolbox, microwave and refrigerator.
